Elitech GSP-6G Temperature and Humidity Data Logger

Manufacturer: Elitech
Model Number: GSP-6G
Product Type: Multi-use temperature and humidity data logger
Intended Use: Ideal for applications requiring precise environmental monitoring, such as pharmaceutical storage, vaccine transportation, and laboratory settings.

🔍 Key Features

• Dual External Sensors: Includes one propylene glycol bottle buffered temperature probe and one combined temperature-humidity sensor, offering three distinct measurement modes:

  • Temperature + Temperature

  • Temperature + Humidity

  • Humidity Only

• Wide Measurement Range:

  • Temperature: -40°F to 185°F (-40°C to 85°C)

  • Humidity: 10% to 99% RH

• High Accuracy:

  • Temperature: ±0.5°F (±0.3°C) at -20°C to 40°C; ±0.9°F (±0.5°C) at other temperatures

  • Humidity: ±3% RH (20% to 90% RH at 25°C); ±5% RH at other conditions

• Large Memory Capacity: Stores up to 16,000 temperature and 16,000 humidity data points.

• Customizable Logging Interval: Configurable from 10 seconds to 24 hours, accommodating various monitoring needs.

• Multiple Alarm Notifications: Audible buzzer, LED indicators, and on-screen alerts to notify users of out-of-range conditions.

• User-Friendly Interface: Large LCD screen displays real-time data, alarm status, and battery life.

• Mounting Convenience: Equipped with two built-in magnets for easy attachment to metal surfaces.

• Power Options: Operates on a single-use 3.6V lithium battery or via USB power.

• Software Compatibility: Supports ElitechLog software for data analysis and report generation in PDF, Excel, or TXT formats. Compatible with both Windows and macOS systems.

📦 What's Included

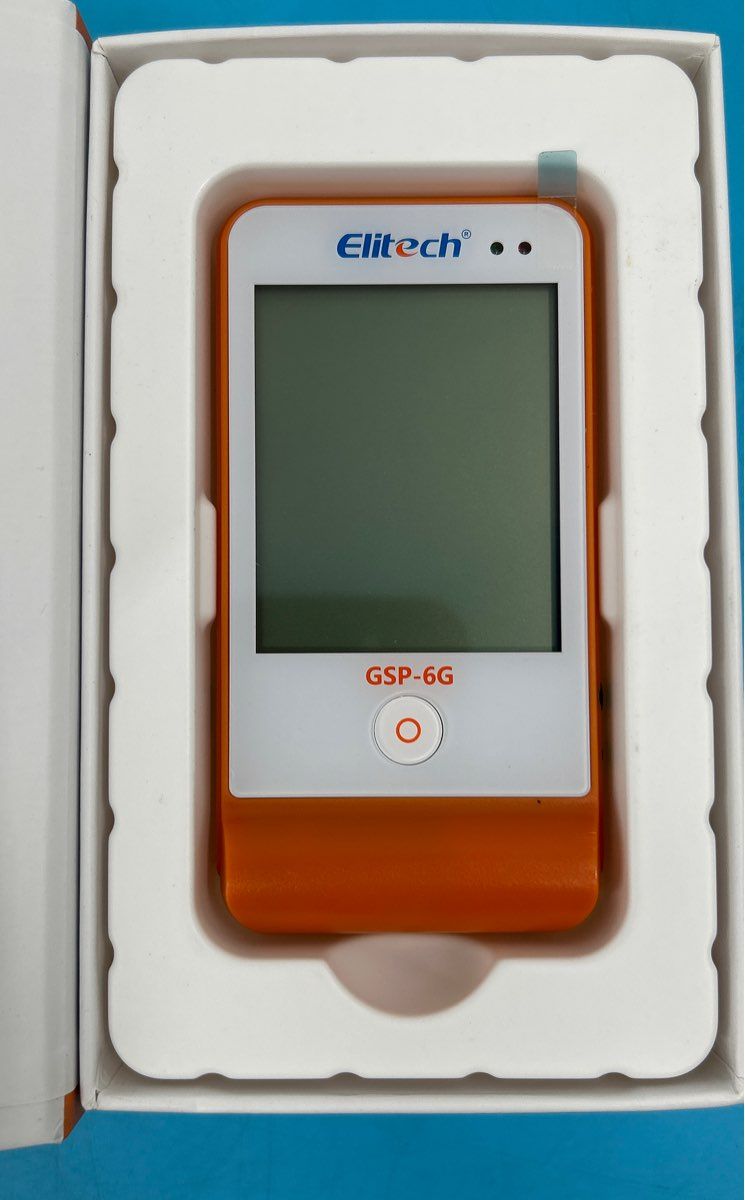

• Elitech GSP-6G Data Logger Unit

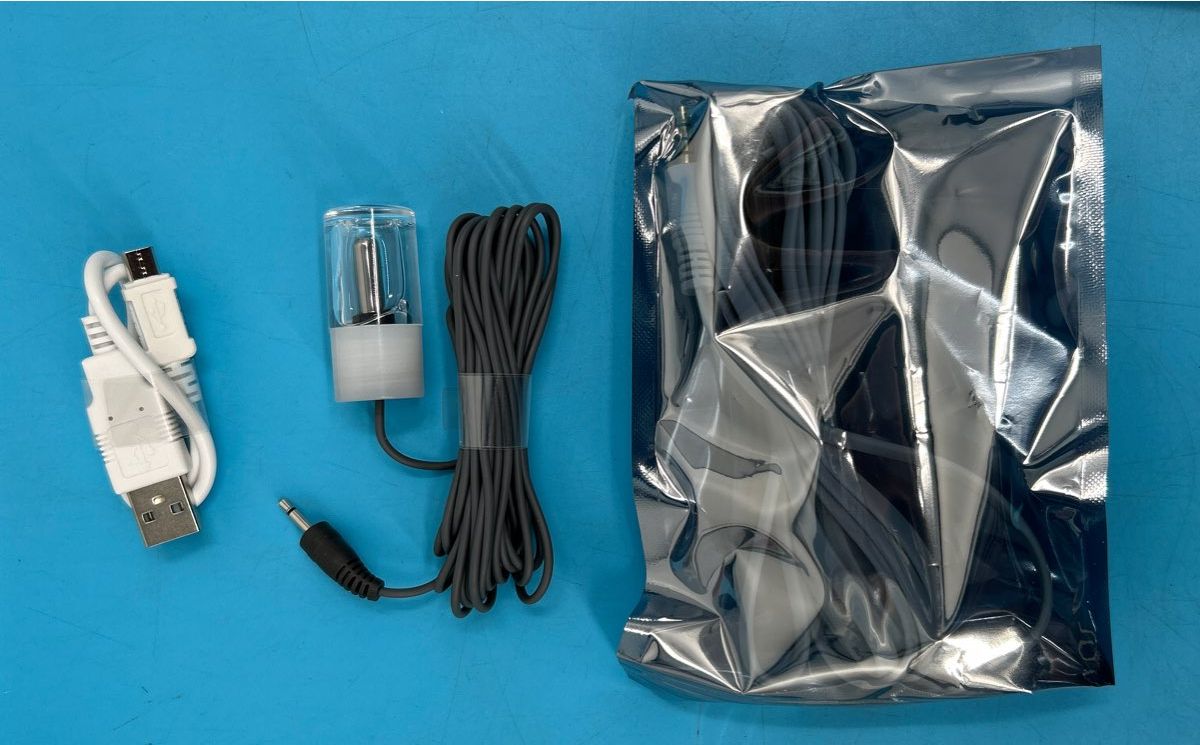

• Propylene Glycol Bottle Buffered Temperature Probe (3 meters)

• Combined Temperature-Humidity Sensor (2 meters)

• USB Cable

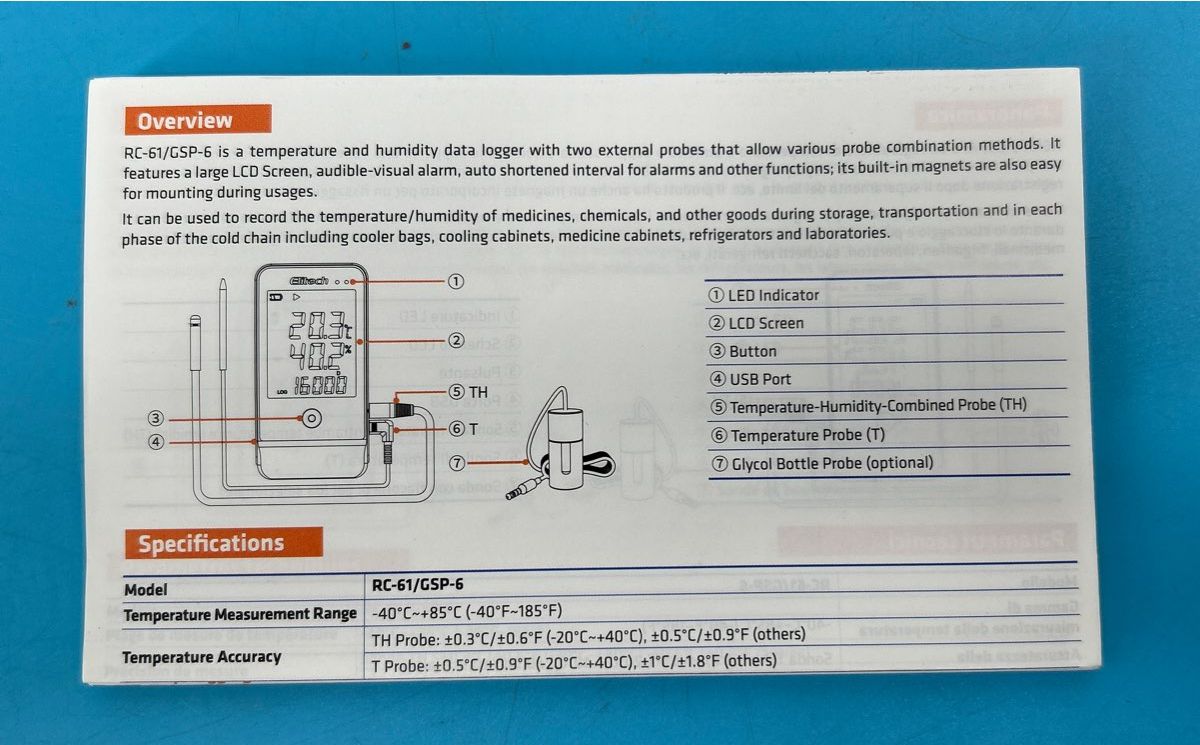

• User Manual

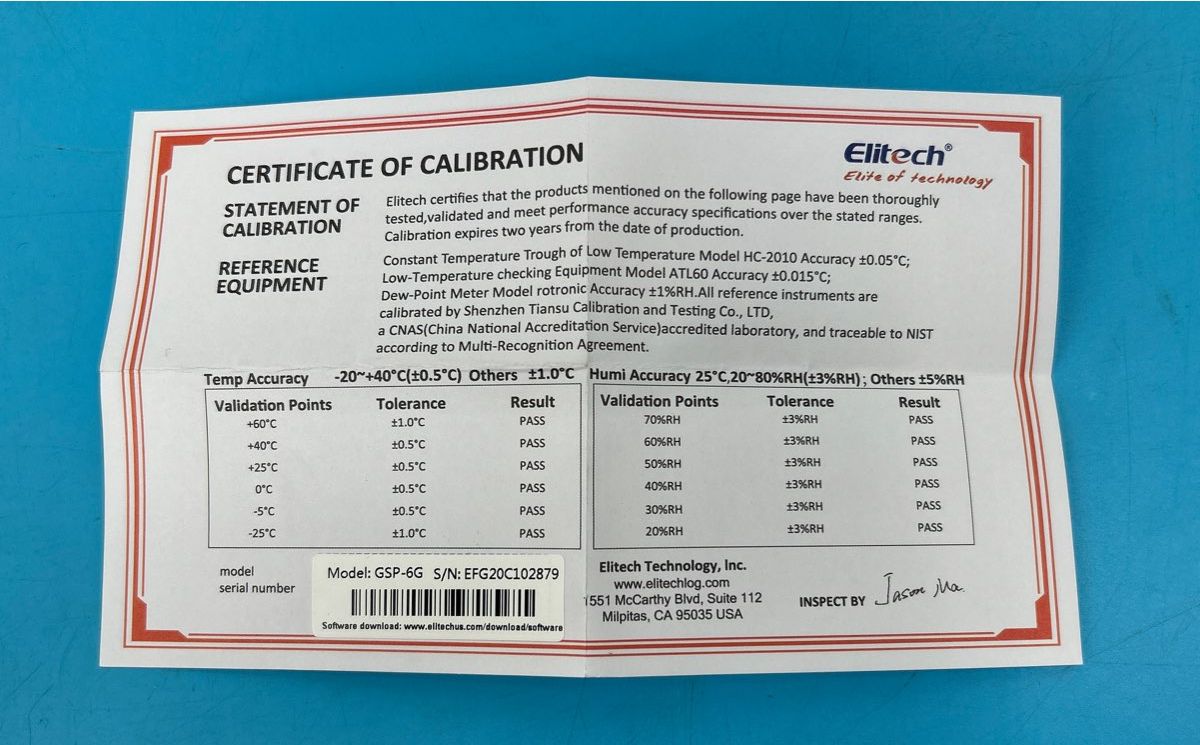

• Certificate of Calibration

• 1-Year Warranty

🛠️ Installation & Usage Tips

• Setup: Connect the external sensors to the data logger and position them appropriately for accurate environmental monitoring.

• Configuration: Use the ElitechLog software to set the desired logging interval, alarm thresholds, and measurement modes.

• Data Retrieval: After the monitoring period, connect the data logger to a computer via USB to download and analyze the recorded data.

• Maintenance: Regularly check the battery status and replace as needed to ensure uninterrupted operation.
